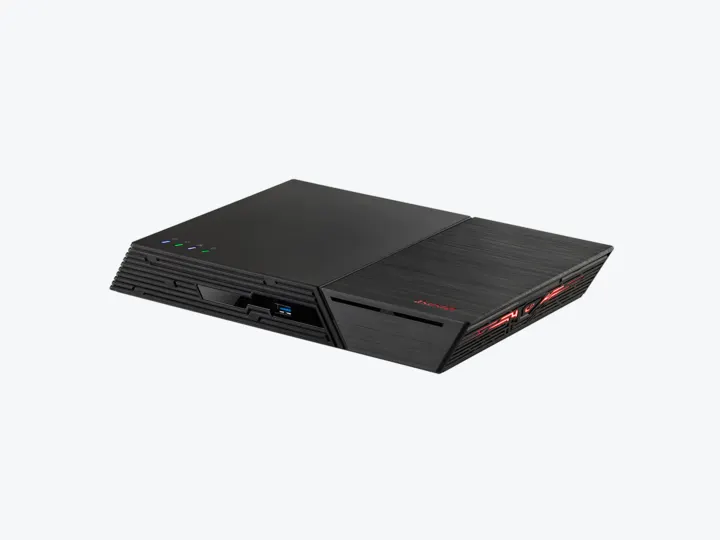

ASUSTOR FS6806X · Exact identity: FS6806X
6 primary bays · AMD Ryzen V3C14 · 4-core · 8GB DDR5 · max 64GB · 1 × 10GbE · Diskless: hard drives cost extra
Catalog amount: $979.99 · recent · Price record: 2026-10-09T03:53:22.354833+00:00. Tax and shipping excluded.
Price observed at the store on the shown date. Confirm the current price and availability at the store.
FS6806X: specifications and dated store comparison →10GbE all-flash with lane-width caveats, not a silent HDMI upgrade
Factory 8GB DDR5 (ECC supported on ECC DIMMs), diskless, 6x M.2 (1x4 / 3x2 / 2x1 PCIe 4.0), 1x10GbE, USB4 without host-to-host, no HDMI
ChooseCompute synthesizes manufacturer specifications, original third-party testing and merchant listings. We have not tested the FS6806X ourselves. See the review evidence ↓
All 6 storage slots use NVMe SSDs. Select compatible M.2 2280 modules and budget for endurance and a separate backup. The manufacturer archive contains copied HDD-capacity examples; those are not accepted as SSD limits.[1]
Its NVMe slots do not accept SATA hard drives, and local SSD headline speeds are not network speeds.[1]
1 x 10 Gigabit Ethernet (10G/2.5G/1G/100M); confirm the rest of the network and drive layout.[1]
Follow any specification for its full conditions and sources.
Living with it
Official table: one PCIe 4.0 x4, three x2, two x1. Memory is 8GB DDR5-4800; ECC works only with ECC modules, and mixing non-ECC disables ECC. Factory 8GB is not labeled ECC. USB4 host-to-host is unsupported. No HDMI.[1]
KitGuru tested six mixed 2TB Gen4 SSDs on 10GbE with factory 8GB RAM. ATTO RAID 5 sequential read/write reached about 1,110 MB/s. Its 530.21/481.36 MB/s CDM figures are 4K random results from different arrays. A 50GB mixed folder wrote at 278–290 MB/s across arrays. In RAID 5, encrypting a 16GB folder reduced write speed from 1,031 to 368 MB/s and read speed from 998 to 453 MB/s. Plan around the files and encryption you actually use.[4]
Hands-on confirms HDMI is gone and that x1 slots are the ones that run out of PCIe budget first if you also want USB4. Ambiguous Mb/s asides are not used as measurements.[5]
Our buying advice combines official specifications with the original reviews below. We have not tested this product ourselves. Expand a review for its setup, measurements and limitations.
Simon CrispFeb 26, 2025
Six mixed 2TB Gen4 SSDs, factory 8GB and 10GbE. ATTO RAID 5 sequential 1,110 MB/s both ways; 4K CDM random is a separate workload. RAID 5 encrypted write/read 368/453 MB/s versus plain 1,031/998. PCMark overall 153–167 MB/s across arrays. Wall peaks 25.8–29.4 W read and 27.9–38.2 W write; idle 13.1 W. Filesystem unnamed.
Read the original reviewKitGuru Flashstor 6 Gen 2 (FS6806X) 10GbE SSD array tests
Tested: Mixed Gen4 2TB SSDs (Netac NV7000-t, Klevv CRAS C925, Crucial T500, Solidigm P41 Plus, HP FX990 PRO, Samsung 990 PRO) in RAID 0/5/6/10. Client 10GbE Gigabyte GG-AQC107 (Gigabyte supplied). Stock 8GB DDR5. Filesystem not stated on the methodology page (official EXT4/Btrfs). Tools: ATTO, CDM 8.0.5, Intel NASPT, PCMark 10 Data Drive, FastCopy from a 2TB Gen4 SSD. ADM 5.0.0.RA82.
Applies to: Exact FS6806X on 10GbE. KitGuru intro ‘two 10GbE ports’, page-3 ‘8GB ECC’, and closing ‘six PCIe Gen4 x4 slots’ contradict the official table (1×10GbE; 8GB DDR5 with ECC supported if ECC DIMMs; 1×4 + 3×2 + 2×1). Official footnotes win.
| Measurement | Result | Conditions & source location |
|---|---|---|
| ATTO RAID 5 sequential read/write | 1,110 / 1,110 MB/s | Six mixed 2TB Gen4 SSDs, 10GbEPage 7 |
| CDM 4K random QD32 T16 | 530.21 MB/s read RAID 6; 481.36 MB/s write RAID 10 | Different arrays; not sequential; printed IOPS have inconsistencies and are not convertedPage 8 |
| Encrypted mixed-folder RAID 5 write/read | 368 / 453 MB/s | 16GB folder; plain 1,031 / 998 MB/s; chart read legend typoPage 11 |
| Encrypted mixed-folder RAID 6 write/read | 409 / 457 MB/s | 16GB folder; plain 1,007 / 1,019 MB/s; chart read legend typoPage 11 |
| PCMark Data Drive overall bandwidth / latency | 153–167 MB/s / 149–169 microseconds | Range across RAID 0/5/6/10, not all same arrayPage 13 |
| FastCopy 50GB mixed-folder write/read | 278–290 / 183–285 MB/s | 28,523 files; range across arraysPage 14 |
| Wall power | Read peaks 25.8–29.4 W; write peaks 27.9–38.2 W; idle 13.1 W | Across RAID arrays during CDM; official operation/sleep values use different conditionsPage 15 |
Limits to keep in mind
Mark PickavanceMay 24, 2025
Stock 8GB non-ECC; ECC possible per official. USB4 host networking not official. Mb/s arithmetic not measurements. Quiet subjective. Article prices not current.
Read the original reviewTechRadar hands-on: FS6806X lanes, 10GbE and missing HDMI
Tested: Hands-on FS6806X with unspecified Gen4 NVMe modules that were not on the compatibility list but worked during the review window. No RAID benchmark. Performance section is PCIe/USB saturation arithmetic (including 2000Mb/s and 1200Mb/s), not a controlled copy test. Quiet is subjective.
Applies to: Exact enclosure for missing HDMI, 10GbE vs dual 2.5GbE, and stock 8GB non-ECC vs ECC-capable DIMMs (official: Supports ECC; mixing non-ECC disables ECC). USB4 host networking / LAN adapters are reviewer claims; official table says host-to-host is not supported — not settled. Do not convert Mb/s asides into MB/s measurements. 2025 article prices are not current offers.
Limits to keep in mind
This NAS does not support the 3.5-inch HDD catalog; no HDD combinations are generated.
Before you buy
The selected configuration is diskless. Include drives, independent backup capacity and any network adapter or switch upgrade.[2]
Four surveillance-camera licenses are included; more channels need licenses. Cloud storage and optional services have separate terms.[1]
Factory 8GB DDR5 (ECC supported on ECC DIMMs), diskless, 6x M.2 (1x4 / 3x2 / 2x1 PCIe 4.0), 1x10GbE, USB4 without host-to-host, no HDMI Check the total delivered price at the store.
Lowest observed price
$979.99
In stock at observation
Currency not confirmed
6 stores · 2 recent price observations
Seller not recorded
$979.99
Observed price
Currency not confirmed
In stock at observation · Condition not recorded
Observed Oct 9, 2026, 3:57:23 AM UTC[7]
View exact product at B&HSold by Platinum Micro, Inc.
$979.99
Observed price
Currency not confirmed
In stock at observation · Condition not recorded
Observed Oct 9, 2026, 3:53:22 AM UTC[8]
View exact product at AmazonSold by PlatinumMicro
$979.99
Historical price
Stock not confirmed · New
FS6806X; factory memory; diskless enclosure
Observed shipping: $0.00
Observed Oct 9, 2026, 1:11:30 AM UTC[6]
View exact product at NeweggSold by Platinum Micro
$1,040.99
Historical price
Currency not confirmed
Stock not confirmed · Condition not recorded
Observed Sep 27, 2026, 9:26:41 AM UTC[9]
View exact product at WalmartSold by B&H Photo Video
Check price
Stock not confirmed · New
FS6806X; factory memory; diskless enclosure
Confirm shipping charge and delivery for the US address at checkout. Confirm exact MPN, factory memory and selected marketplace seller. Tax excluded; quoted price, if present, reflects only its original observation.
Observed Sep 10, 2026[2]
View exact product at B&H PhotoSeller not recorded
Check price
Stock not confirmed · Condition not recorded
Observed Date not confirmed
View exact product at Best BuyPrices are dated observations. Confirm the model, seller, condition, stock and delivered total at the store. Older prices remain visible as history. Links may earn a commission.
The hardware table lists 8GB DDR5-4800 and separately says ECC is supported and will disable if non-ECC is mixed. It does not call the pre-installed module ECC. Treat Amazon ECC titles as unconfirmed.[1]
KitGuru ATTO RAID 5 sequential read/write reached about 1,110 MB/s. Its mixed-folder and encrypted transfers were slower: RAID 5 encrypted write/read 368/453 MB/s. CDM 4K random figures measure a separate workload.[4]
No. One x4, three x2, two x1. A x1 slot can still fill 10GbE, but USB4 plus LAN at once needs a wider slot according to TechRadar’s wiring discussion.[1][5]
Host-to-host is not supported on the published table.[1]
Research updated Sep 11, 2026. Individual source check dates are listed below. Measurements belong to the named reviewers; tested configurations and software versions may differ from the product you buy.
Checked Sep 11, 2026 · FS6806X: V3C14, 8GB DDR5 (ECC supported if ECC DIMMs; factory module not labeled ECC), 6x M.2 mixed PCIe 4.0 widths, 1x10GbE, USB4 host-to-host unsupported, no HDMI, 90W, 17.9W.
Checked Sep 10, 2026 · Product title; MFR number; In the Box; Specifications → memory and drive bays. Web reader opened exact PDP; cached price date unknown, so no current price or stock asserted.
Checked Sep 10, 2026 · Model and current .product-buy-box: Sold by PlatinumMicro, displayed USD price and Add to cart. ItemDetail seller agrees where provided; other-seller popovers are excluded.
Checked Sep 11, 2026 · p6 methodology mixed Gen4 2TB SSDs + 10GbE AQC107; p7 ATTO RAID5 1110 MB/s; p8 CDM RAID6 530.21 MB/s read
Checked Sep 11, 2026 · Hands-on: no HDMI vs Gen1; USB4 vs 10GbE; PCI lane layout. Slot Mb/s figures treated as ambiguous units, not adopted.
